Docking

When a dizmo is moved close to another, dizmoViewer asks both of them if they allow docking. If at least one of them answers with true dizmoViewer will display a visual feedback about the docking to the user.

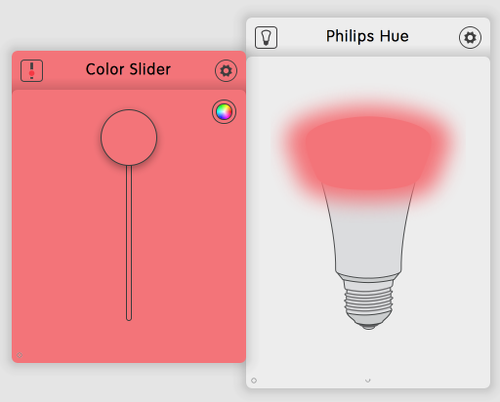

Docking two dizmos
Docking two dizmos

You can allow docking by setting the parameter to true (default is false) in the function dizmo.canDock. However, for a successful docking, both dizmos have to set this parameter to true.

// docking disabled
dizmo.canDock(false);

// docking enabled
dizmo.canDock(true);

The function dizmo.onDock will notify you when another dizmo tries to dock to yours.

dizmo.onDock(function(dockingDizmo){
    console.log('Docked to dizmo with id ' + dockingDizmo.identifier);
});

The function dizmo.onUnDock will notify you when an already docked dizmo undocks, that is disconnects.

dizmo.onUndock(function(dockingDizmo){
    console.log('undocked');
});

Make data available for the docked dizmo

Docked dizmos exchange data via the public property stdout:

publicStorage.setProperty('stdout');
publicStorage.getProperty('stdout');

Take a look at the chapter Communication between dizmos for an in-depth explanation of how dizmos exchange data.
